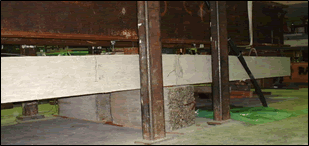

Test results prove full continuity action in shear and moment between individual precast KWIK SLABS. KWIK JOINTS demonstrate 100% consistent performance in developing full strength of connected reinforcing bars to provide reliable monolithic action.

Applications

The KWIK SLAB system (covered by U.S. Patent No. 7,134,805) is a precast concrete slab construction system ideal for use in any area where the disruption of traffic due to road construction or repair is a major concern. Drivers are frustrated when stalled in traffic due to road construction or repair work. Using the KWIK SLAB system, roadways can be constructed or repaired in a matter of days versus weeks and work can be performed at night when traffic is minimal, thus minimizing traffic gridlock and driver frustration.

The KWIK SLAB system, which includes KWIK JOINT steel couplers (covered by U.S. Patent No. 7,134,805), rapidly interlocks precast concrete panels allowing two-way rebar continuity throughout the entire pavement slab. This two-way rebar continuity creates a structurally superior, precast concrete slab system.

The KWIK SLAB system can be utilized for new construction, extensions or repairs of roadways, bus stops, bridge decks, parking lots, airfields, docks, or any project that speed of construction and strength of slab are important. Precast slabs are cast and cured offsite and transported to the jobsite when needed, thus saving weeks of formwork and curing time normally associated with cast-in-place construction methods.

Close-up of KWIK JOINT (covered by U.S. Patent No. 7,134,805) cast in KWIK SLAB.
Inventor Dr. Alfred Yee with KWIK SLAB.
Connected KWIK SLABS with ungrouted KWIK JOINTS.

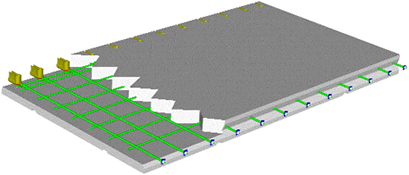

KWIK SLAB cut-away detail showing reinforcing steel and KWIK JOINTS.
